Seasonal use · made simple

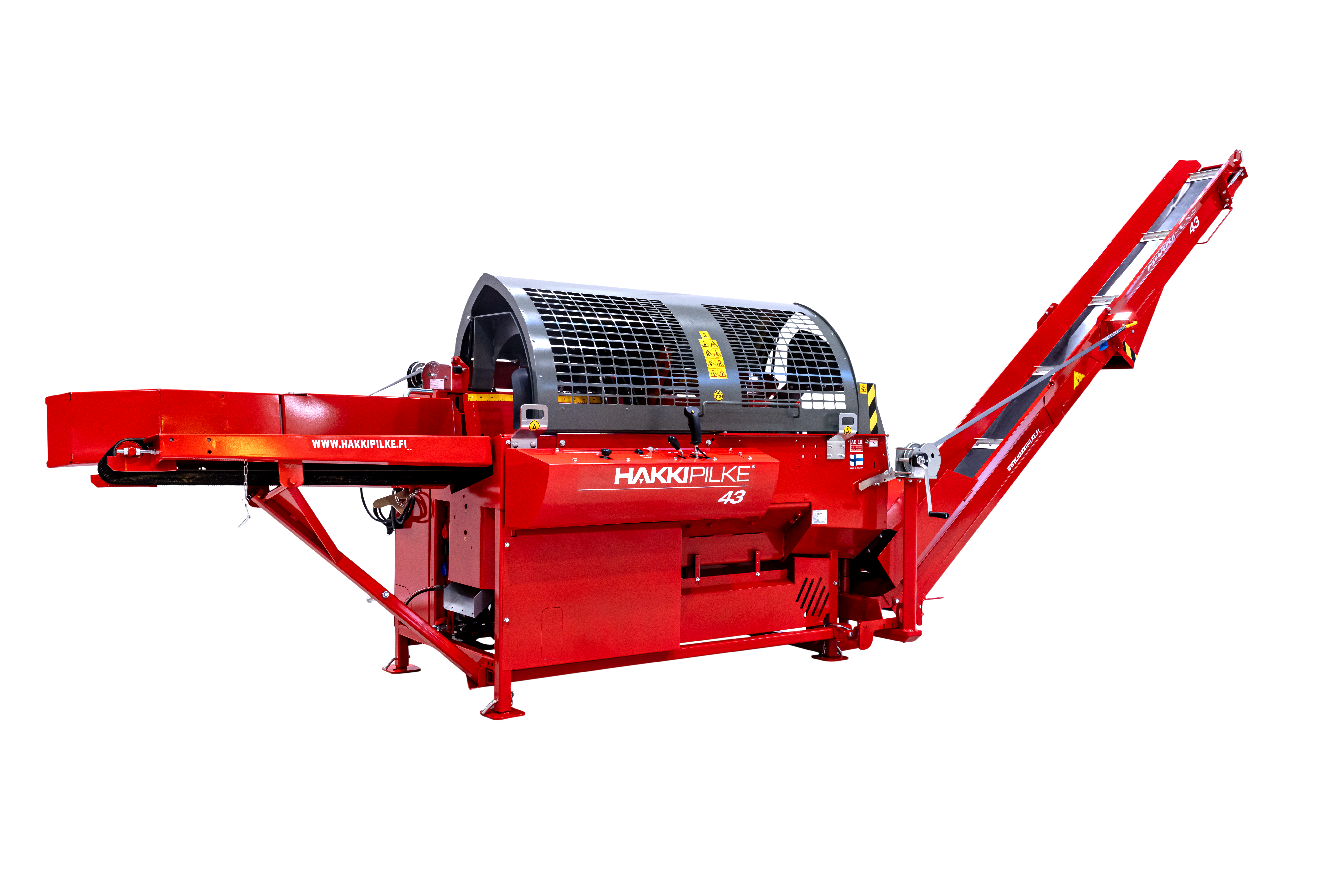

Hakki Pilke 43
Built with the same bullet-proof design as the 43 Pro, the Hakki Pilke 43 is a starter model with fewer features, offering a robust and efficient firewood processor ideal for those needing a reliable machine for processing large logs on a smaller scale. As a streamlined version of the 43 Pro, this model retains the essential performance features while delivering the same high processing speed.
17 inches
24 inches
Tons
01 / Key features
Simplified. Reliable.

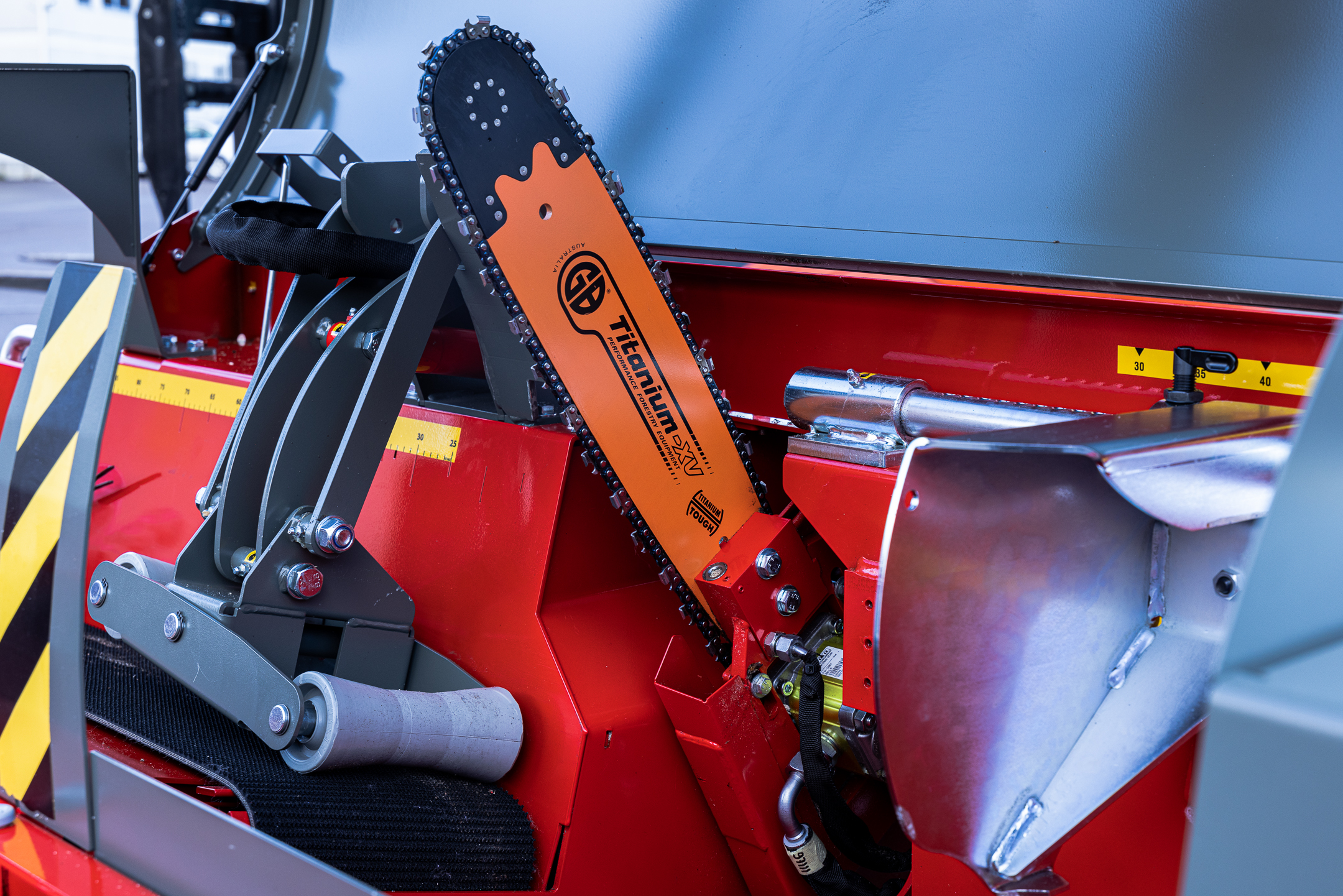

With 15 tons of splitting force, the 43 easily handles logs up to 43 cm in diameter, splitting them into up to 12 pieces, or even 16 with soft wood. The HakkiSplit™ system, adapted from the 43 Pro, ensures fast and consistent splitting, automatically adjusting force as needed. The hydraulic log clamp and joystick-controlled HakkiCut™ system make cutting safe and efficient, allowing the entire cutting process to be managed with a single button press.
Equipped with a cleaning outfeed conveyor, the machine automatically separates debris from firewood during processing, significantly reducing the need for additional cleaning equipment. The 43 also includes a control valve for accessories, making it easy to integrate additional equipment like HakkiFeed log tables. Designed for easy maintenance, the 43 requires minimal upkeep. Thanks to its hydraulic functions, the machine operates without V-belts, ensuring reliable performance and reducing the need for frequent maintenance.
Technical specifications
Technical specifications
Technical specifications
Sizing & power
- Max log diameter: 430 mm / 17”
- Max log length: 600 mm / 24”
- Highest splitting power: 15 t
- Saw blade: 18”.404”
- Power source: PTO, electric motor, combi
- Splitting blade: 2/6 -way
- Outfeed conveyor: 250 mm x 4 m / 10” x 13‘1”
- Infeed conveyor: 2,5 m / 8’2”
DIMENSIONS DURING TRANSPORT
- Height 2560 mm / 8’5”
- Length 2540 mm / 8’4”
- Width: 1400 mm / 4’7”
- Weight: 1360 kg / 2998 lbs
Standard equipment
Included in delivery
- ●Infeed serial connection kit
- ●Accessory valve
- ●Hydraulic infeed carpet
- ●Infeed guide plate
- ●Hydraulic log clamp
- ●Active safety cover
- ●AC10 automatic chain tensioner (hydraulic)
- ●HakkiCut™ cutting control
- ●Automatically optimised saw lowering speed
- ●Electic automatic chain oil lubrication
- ●Hydraulically retracting log measuring device
- ●Half-stroke splitting function
- ●HakkiSplit™ delay-free splitting (3 speeds)
- ●Hydraulic height adjustment of the splitting blade
- ●Pivoting, cleaning outfeed conveyor (manual)
- ●Outfeed conveyor speed control
- ●Log landing plates
Accessories
AVAILABLE SEPARATELY
- +Adjustable work platform
- +Splitting blade: 2/4, 8, 12 -way. 16 -way for soft wood
- +Extra infeed roller
- +Outfeed conveyor extension: 1 m / 3’3”
- +Blower sawdust removal
- +Oil heater (230V, 50Hz)
- +Oil cooler
Compatible accessories
