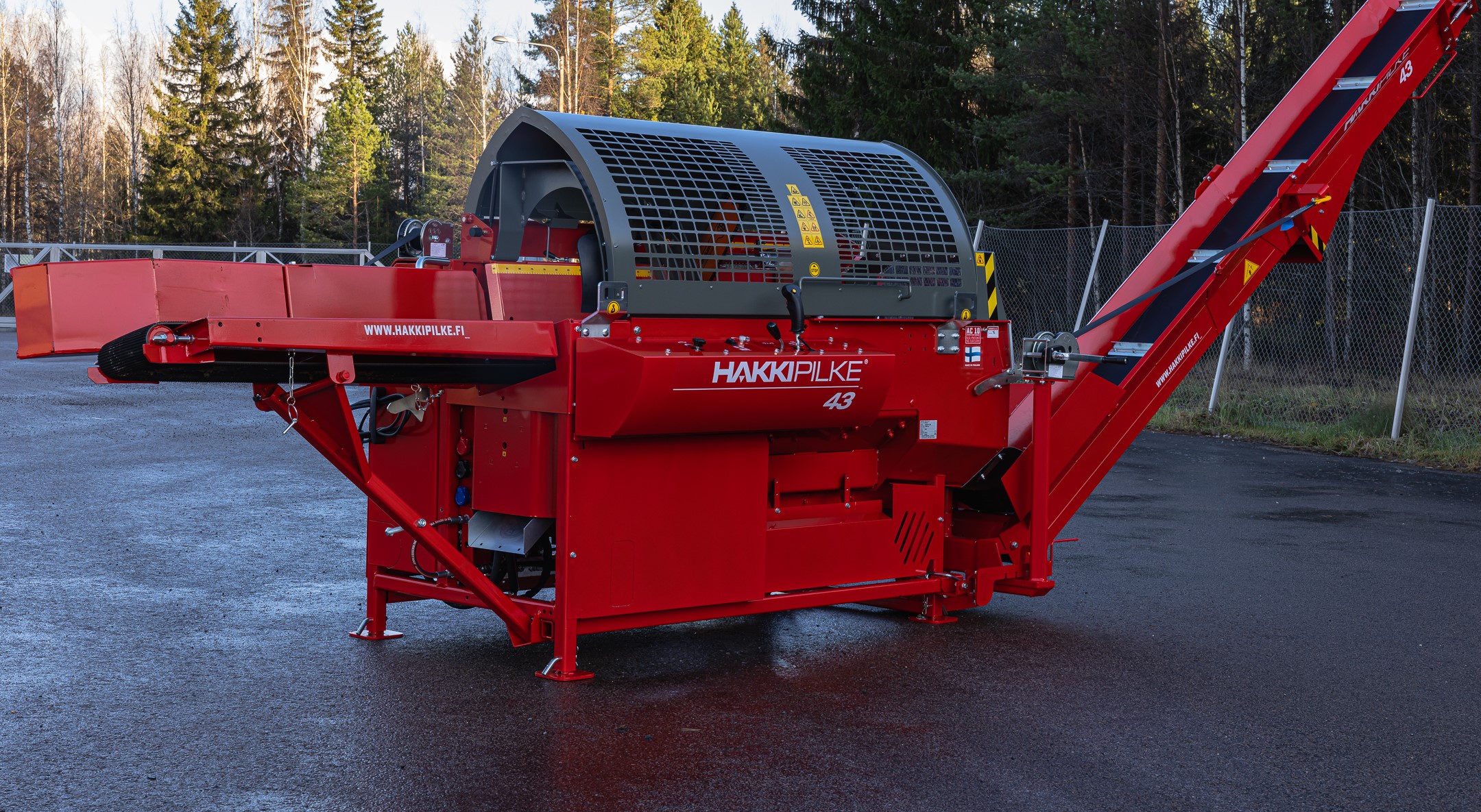

Hakki Pilke 43

Built with the same bullet-proof design as the 43 Pro, the Hakki Pilke 43 is a starter model with fewer features, offering a robust and efficient firewood processor ideal for those needing a reliable machine for processing large logs on a smaller scale. As a streamlined version of the 43 Pro, this model retains the essential performance features while delivering the same high processing speed.

 With 15 tons of splitting force, the 43 easily handles logs up to 43 cm in diameter, splitting them into up to 12 pieces, or even 16 with soft wood. The HakkiSplit™ system, adapted from the 43 Pro, ensures fast and consistent splitting, automatically adjusting force as needed. The hydraulic log clamp and joystick-controlled HakkiCut™ system make cutting safe and efficient, allowing the entire cutting process to be managed with a single button press.

Equipped with a cleaning outfeed conveyor, the machine automatically separates debris from firewood during processing, significantly reducing the need for additional cleaning equipment. The 43 also includes a control valve for accessories, making it easy to integrate additional equipment like HakkiFeed log tables. Designed for easy maintenance, the 43 requires minimal upkeep. Thanks to its hydraulic functions, the machine operates without V-belts, ensuring reliable performance and reducing the need for frequent maintenance.

430 mm / 17 in

600 cm / 24 in

15 t

Technical specifications

TECHNICAL SPECIFICATIONS

Max. log diameter: 430 mm / 17”

Max. log length: 600 mm / 24``

Highest splitting power: 15 t

Saw blade: 18”.404”

Power source: PTO, electric

Splitting blade: 2/6 -way

Outfeed conveyor dimensions: 250 mm x 4 m / 10” x 13‘1”

Infeed conveyor length: 2,5 m / 8’2”

DIMENSIONS DURING TRANSPORT

Height: 2560 mm / 8’5”

Length: 2540 mm / 8’4”

Width: 1400 mm / 4’7”

Weight: 1360 kg / 2998 lbs

STANDARD EQUIPMENT

Infeed serial connection kit

Accessory valve

Hydraulic infeed conveyor

Infeed guide plate

Hydraulic log clamp

Active safety cover

AC10 automatic chain tensioner (hydraulic)

HakkiCut™ cutting control

Automatically optimised cutting speed

Electic automatic chain oil lubrication

Hydraulically retracting log measuring device

Half-stroke splitting function

HakkiSplit™ delay-free splitting (3 speeds)

Hydraulic height adjustment of the splitting blade

Pivoting, cleaning outfeed conveyor (manual)

Outfeed conveyor speed control

OPTIONAL EQUIPMENT

Adjustable work platform

Splitting blade: 2/4, 8, 12 -way. 16 -way for soft wood

Extra infeed roller

Outfeed conveyor extension, 1 m / 3'3``

Blower sawdust removal

Oil heater (230V, 50hz)

Oil cooler

ACCESSORIES

HakkiLift 431

HakkiFeed 372

HakkiFeed 422

HakkiFeed 471

HakkiFeed 472

Hakki Pilke Cleaner

Hakki Pilke Roller

Power Unit
